Alerts and Ticketing

One architecture in one scalable product

A from the ground up, Integrated system (not a bolted on package with a different GUI) that pulls together Alerts from Codima Toolbox Monitoring and External Alerts such as Syslog, and then Classifies and Presents them throughout the system including in Codima Toolbox Live Maps (including Probes).
Tickets can be generated Automatically or added Manually and sent to general or specialised Teams. The system automatically Tracks and chases up Tickets by talking to engineer and supervisor pools, using an elegant but world class setup.

Alert Sources

Alerts are logged and processed by Codima Toolbox. Sources include Codima Toolbox Generated Monitoring Alerts such as CPU Loading too high, Ping Response time too long, Disk access slow. Additionally, External Alerts from network gear like Switches, Routers and firewalls are all processed, be they from Syslog or SNMP Traps.

Alerts from Windows

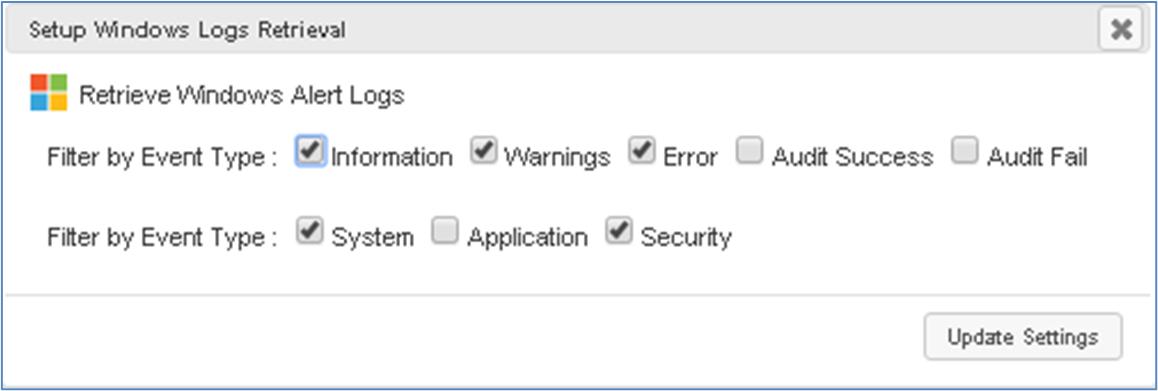

The system can automatically retrieve Windows Log Alerts and process them as with other Alerts for example show Security or Failure icons on the Topology maps.

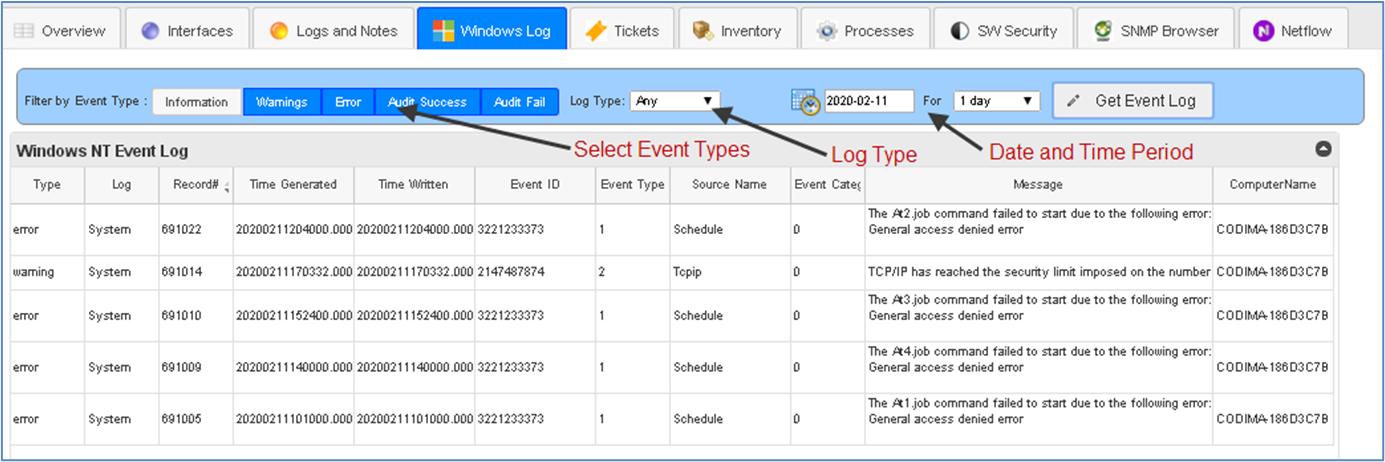

The Windows alerts can be accessed quickly (unlike directly thru windows logs) and sorted and searched in the grid below.

Alerts on the Codima Toolbox Map

All kinds of Alerts and live Status is shown on the Maps. Below there is shown a Failure Domain before fixing a problem.

After fixing the Problem the failure domain is reduced as is clear on the Map below.

Scan Your Entire Network in Seconds

Ticketing Operation

Tickets are normally created automatically by matching Alert Triage rules setup in Codima Toolbox, however Tickets can also be added manually. Codima Toolbox is a fully integrated product so on detection of an Alert, then a ticket is generated and emailed to an Engineer in around ONE SECOND. There is no passing around Alerts between separate systems so lightning fast operation, if a device crashes, or a Firewall critical event occurs, an email is sent to the appropriate engineer in seconds.

The Ticketing Rule based Engine

This feature runs in real time and checks incoming Alerts to see if a new Ticket needs to be Generated.
Existing tickets are tracked for timeout violations causing Supervisor Message to be generated.

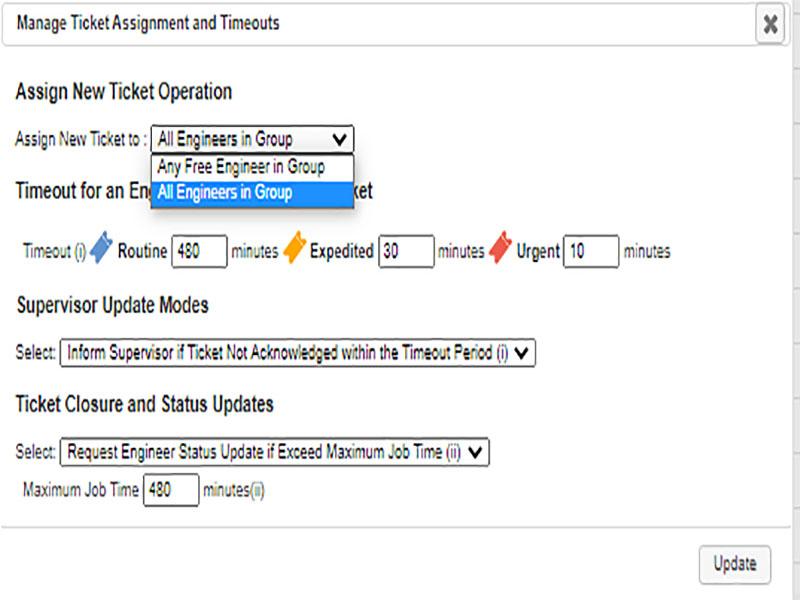

This simple GUI below condenses a complex GUI in other products, into a single setup box in Codima Toolbox without loss of functionality.

Engineering Resources Management

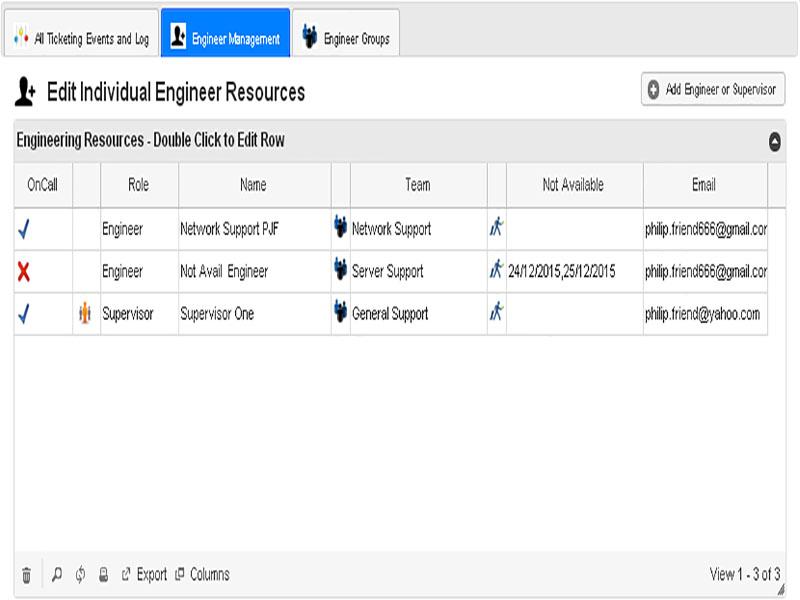

Pools of general or specialised teams can be set up in minutes. The team is selected by the Triage Engine when processing Alerts. Extra teams possibly regionally based can be added using Engineer Groups.

Generate User Tickets at Will

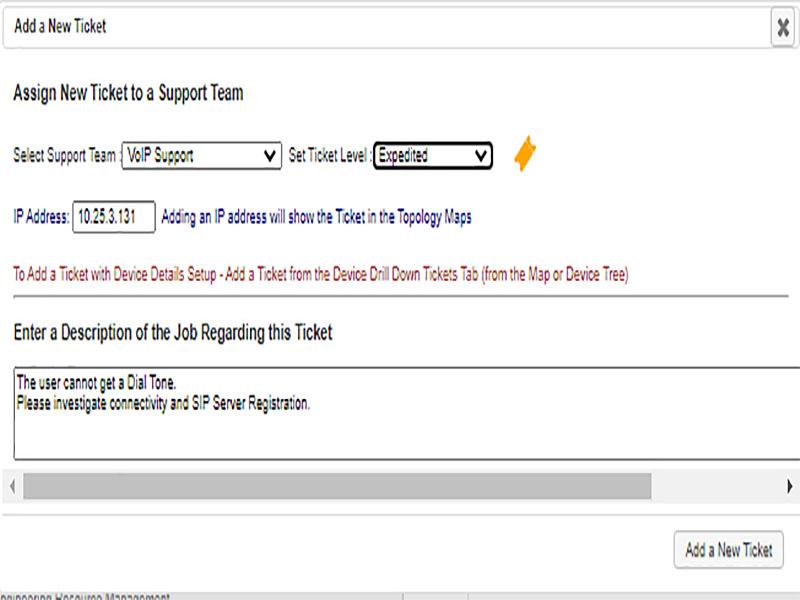

Tickets can be added manually by a Supervisor Level engineer either a General Ticket from the Ticketing GUI, or by clicking on a map node and adding a prefilled ticket using Discovery Knowledge to save work for the user.

A ticket is added from a Map node so highlighted details are automatically setup.

Viewing Tickets

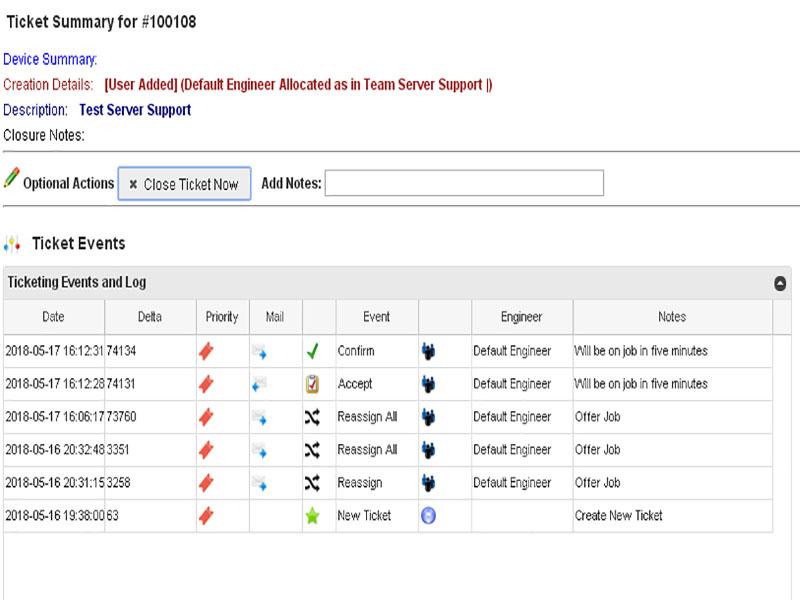

A live Ticket status display shows the status of all active Tickets. The supervisor has the option to manually reassign or close tickets. This is in a standard Codima Toolbox grid with search, sort and export features to document Ticket progress.
Below is listed the system log of assigning tracking, and also Engineer responses.

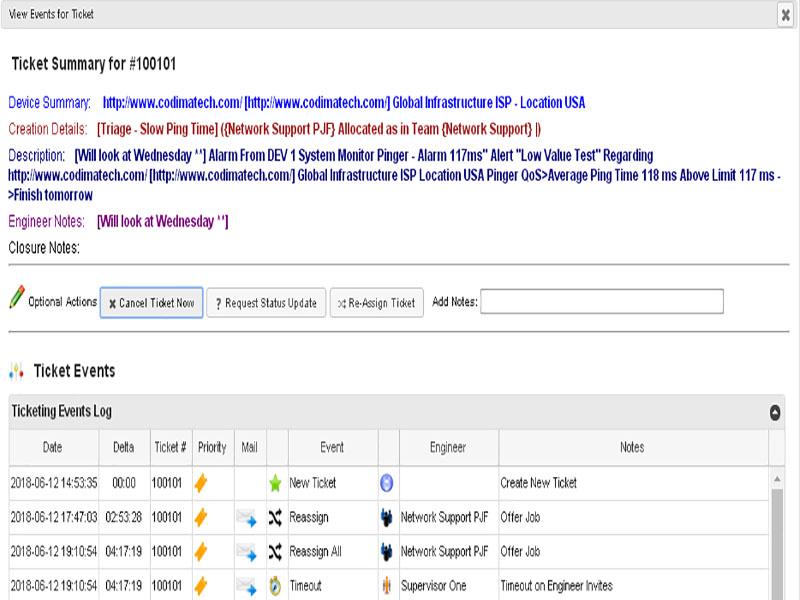

Below is an individual ticket drill down for ticket 100101

Tickets on the Codima Toolbox Maps

Active Tickets are matched to devices in the Codima Toolbox Map, below we see 4 devices with Expedited Priority Tickets outstanding, clicking on the Ticket icon will show ticket details.
